What is HVAC Duct Insulation?
What is HVAC Duct Insulation?
HVAC duct insulation is used to reduce heat loss or gain in air distribution systems while preventing condensation on duct surfaces. In commercial buildings, proper duct insulation improves energy efficiency, maintains air temperature, and protects mechanical systems.
Reflective HVAC duct insulation, like Insulapack systems, uses multi-layer foil surfaces to reduce radiant heat transfer while remaining thin and flexible for tight mechanical spaces.
Product Overview
Reflective Insulation Engineered for HVAC Duct Systems

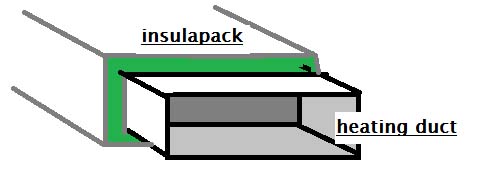

Insulapack HVAC duct insulation combines multi-layer reflective aluminum foil with sealed bubble chambers to control radiant heat transfer within mechanical duct systems.
The thin and flexible structure allows fast installation around rectangular and round ductwork while maintaining thermal efficiency and condensation control.
This makes it ideal for commercial HVAC duct insulation where traditional fiberglass insulation may be too bulky or difficult to install.
Technical Performance for HVAC Applications
Insulapack reflective duct insulation is engineered to improve HVAC system efficiency by reducing radiant heat transfer and controlling moisture formation on duct surfaces.
The multi-layer reflective construction maintains thermal performance in tight mechanical spaces where traditional insulation materials may be difficult to install.
These specifications are designed to meet the demands of commercial HVAC duct insulation projects, particularly in tight mechanical rooms and retrofit environments where space and performance are critical.
Technical Specifications
Key Specifications
Compliance & Testing
Base R-Value:
R-10.6 per inch (material value)
Fire Rating:
ASTM E84 – Class A
Thickness:
5/16 in (8 mm)
Vapor Permeability
0.02 perms (ASTM E96)
Roll Width
48 in (1220 mm)
Water Resistance
Resistant to moisture penetration
Roll Length
125 ft (38 m)
Building Code Compliance
ICC compliant
Reflectivity
Up to 97% radiant heat reflection (ASTM C1371)
Durability
Engineered for long-term performance in industrial environments
Why Choose Us
Why Use This Product
In many commercial HVAC systems, traditional duct insulation requires airspace that is not available in tight mechanical environments. Standard duct insulation requires airspace that simply doesn't exist in most retrofit and high-density mechanical spaces.
Insulapack reflective bubble foil duct insulation installs directly on the duct surface — no spacers, no air gap, no clearance required. R-10.6 per inch, ASTM E84 Class A fire rated, LEED compliant. Specified by mechanical contractors and engineers across Canada and the United States.
Application Areas
Where HVAC Duct Insulation Is Used

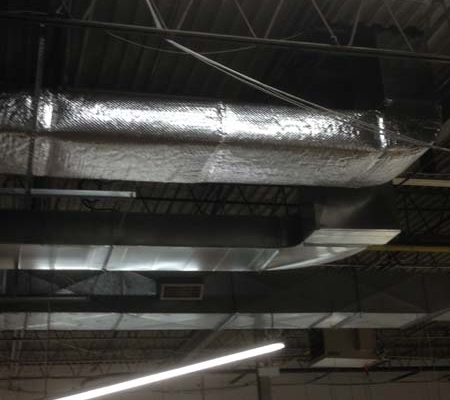

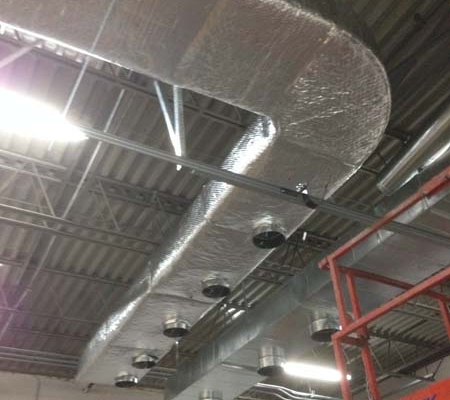

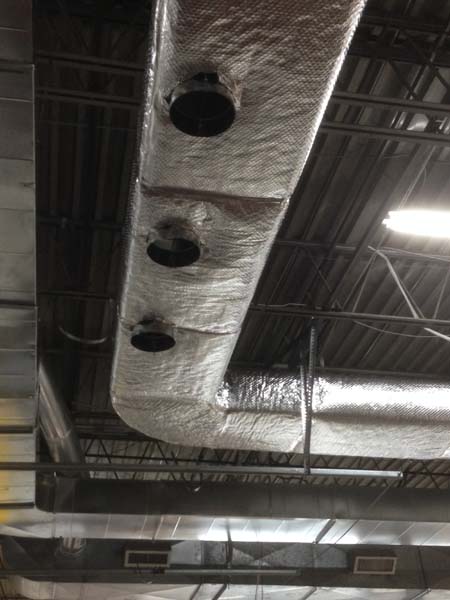

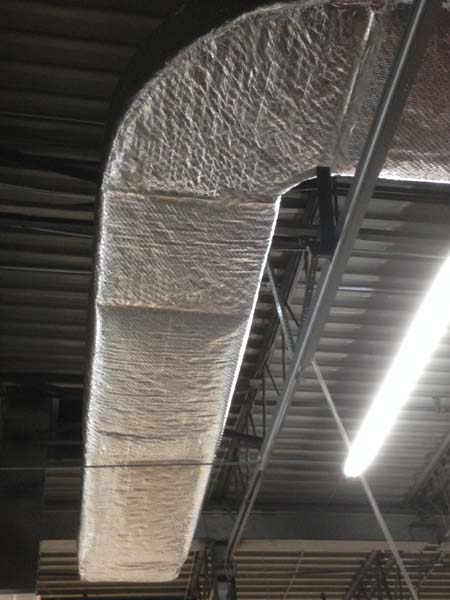

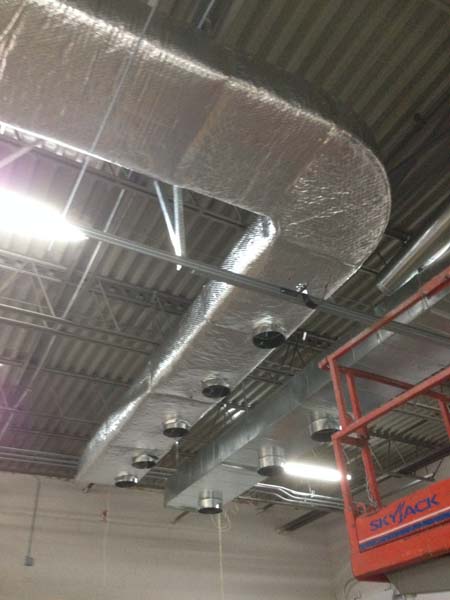

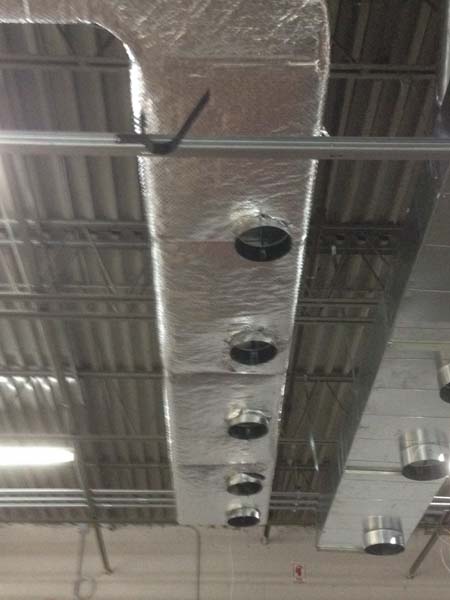

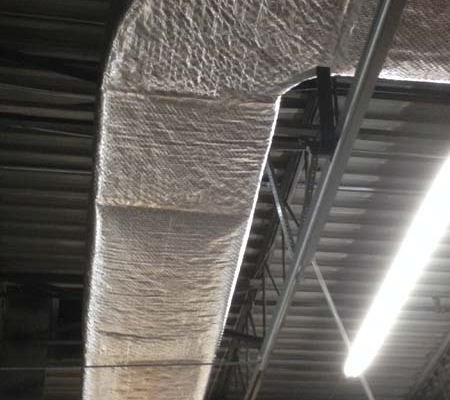

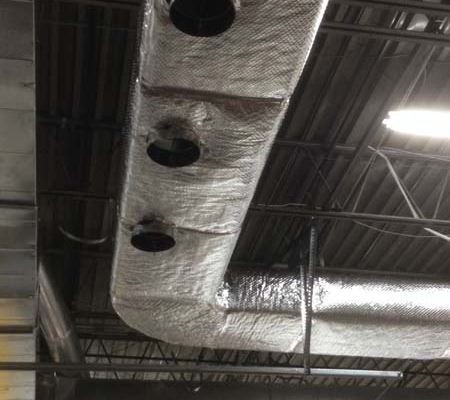

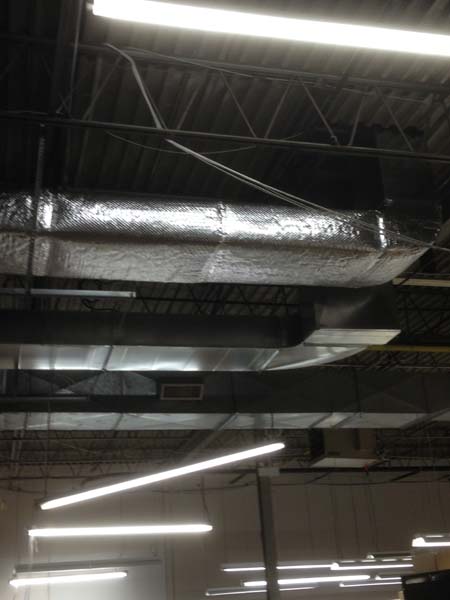

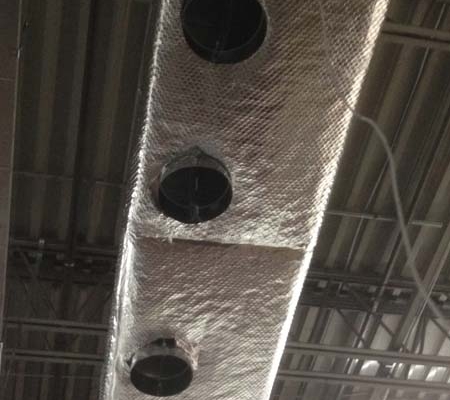

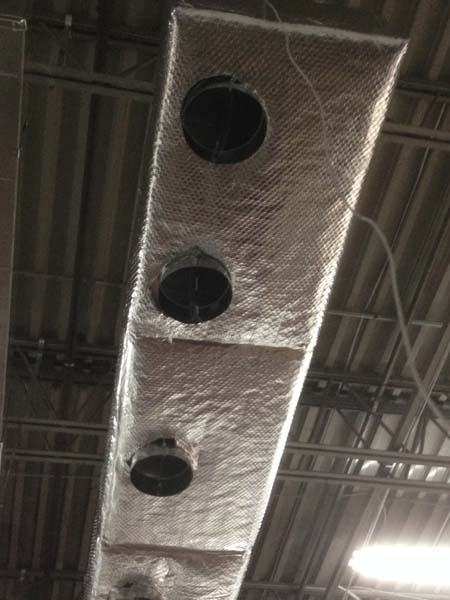

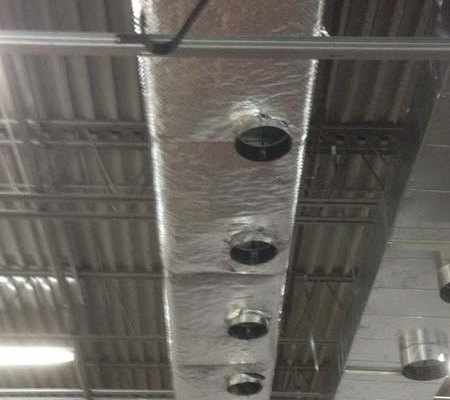

Common in commercial HVAC duct systems, mechanical rooms, and industrial air distribution systems.
Ready to Get Started?
Get a quote for HVAC duct insulation tailored to your commercial or industrial project requirements.
