Wall Cavity Insulation

Reflective Wall

Cavity Insulation for Commercial & Metal Buildings

Reflective Wall

Cavity Insulation for Commercial & Metal Buildings

Insulapack reflective wall cavity insulation helps reduce radiant heat transfer inside wall assemblies while improving thermal efficiency in residential, commercial, and metal building structures.

Insulapack reflective wall cavity insulation helps reduce radiant heat transfer inside wall assemblies while improving thermal efficiency in residential, commercial, and metal building structures.

✔ 97% Radiant Heat Reflection
✔ ASTM E84 Class A fire-tested material

✔ Thin space-saving insulation layer
✔ System R-value up to 10.6

✔ 97% Radiant Heat Reflection
✔ ASTM E84 Class A fire-tested material

✔ Thin space-saving insulation layer
✔ System R-value up to 10.6

Designed for wall assemblies, metal buildings, and commercial construction projects.

Designed for wall assemblies, metal buildings, and commercial construction projects.

Bulk inert gas bubble insulation rolls for commercial metal buildings

Product Overview

Reflective Insulation for Wall Cavity

Insulapack wall cavity insulation combines reflective aluminum foil layers with sealed bubble chambers to reduce radiant heat transfer inside wall assemblies.

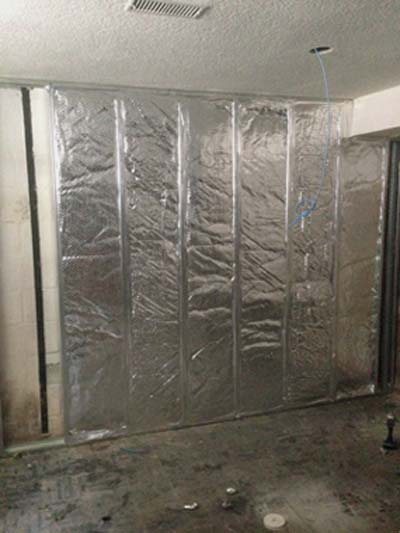

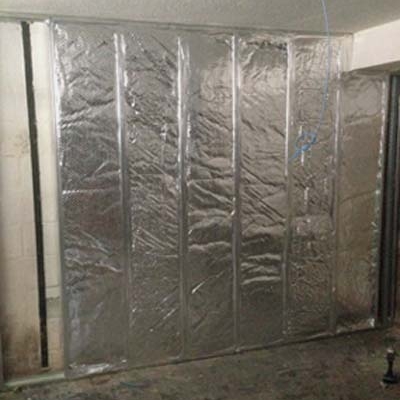

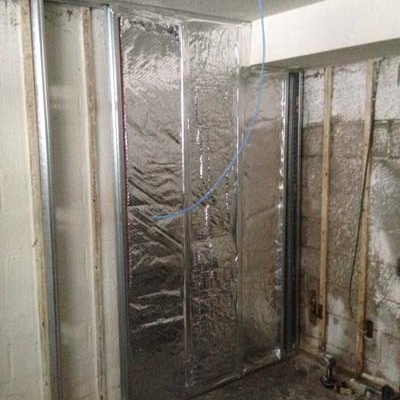

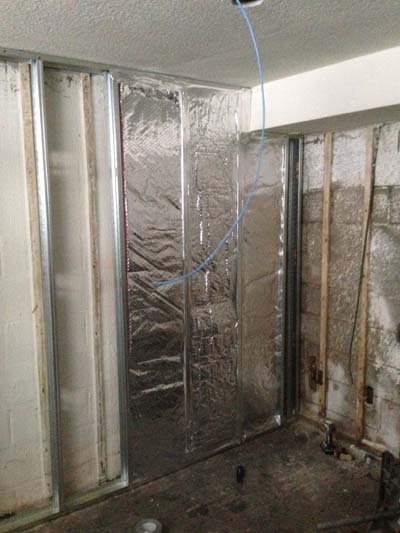

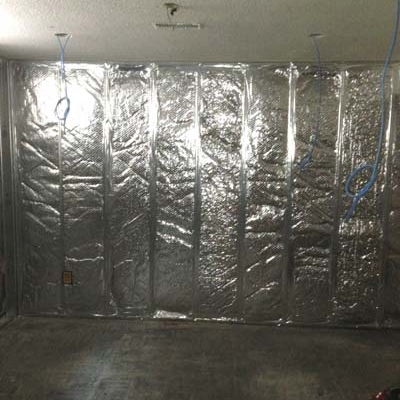

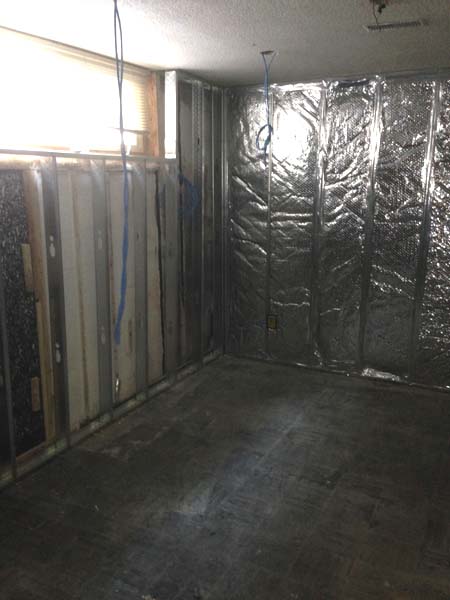

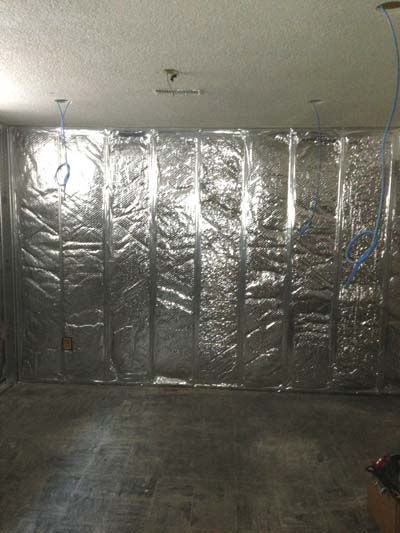

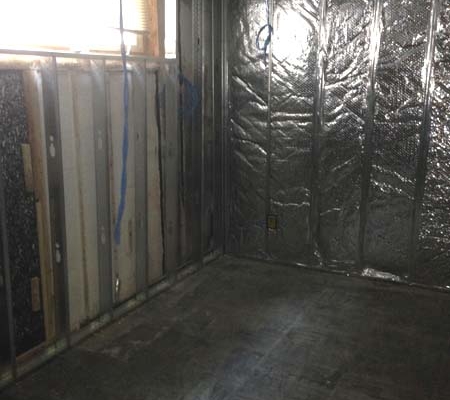

The thin insulation profile allows installation between studs or structural framing where traditional insulation materials may require more space.

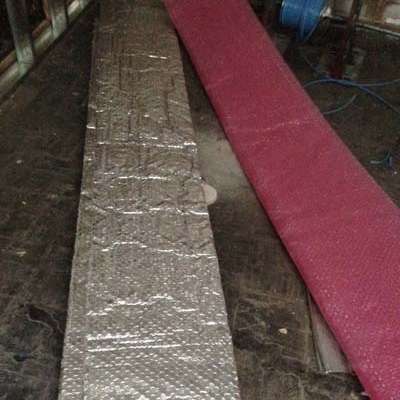

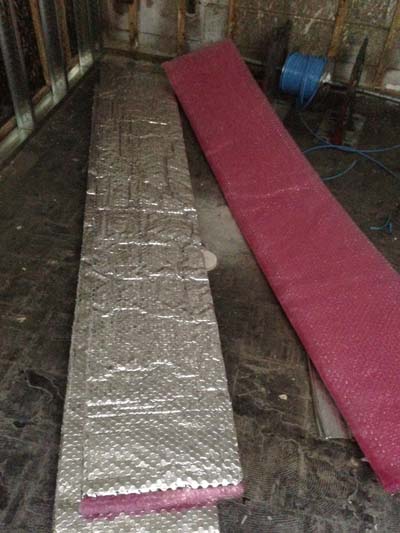

Insulapack’s Wall Cavity insulation comes pre-cut already and can be found in sizes of 48″, 24″, or 16″ strips, so they fit between standard studs. You can choose the size based on your needs and have them custom cut per your specifications. We provide bubble and foil insulation for walls in Canada and the USA.

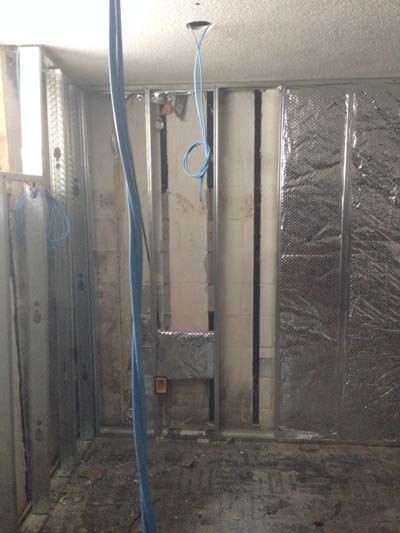

  • Cut holes for wires or other hardware that must protrude through

  • Fit snugly into place

  • Insulapack’s™ Acoustic sheets provide for an STC rating of 65. Tested and meets all ULC/UL requirements for wall cavities

  • Formaldehyde-free

  • UL & ULC Certified

Feature Icon

Space-Saving Insulation

Thin 5/16 in (8 mm) profile for wall cavities.

Feature Icon

Space-Saving Insulation

Thin 5/16 in (8 mm) profile for wall cavities.

Feature Icon

Moisture Control

Helps reduce condensation within wall systems.

Feature Icon

Moisture Control

Helps reduce condensation within wall systems.

Feature Icon

Radiant Heat Reduction

Reflects up to 97% radiant heat energy.

Feature Icon

Radiant Heat Reduction

Reflects up to 97% radiant heat energy.

Feature Icon

Multi-Layer Construction

Available in 1 to 6 layer configurations.

Feature Icon

Multi-Layer Construction

Available in 1 to 6 layer configurations.

Technical Performance for Wall System

Insulapack reflective wall insulation helps control radiant heat transfer and improve thermal efficiency inside wall assemblies.


The multi-layer reflective structure supports energy-efficient building envelopes in commercial, residential, and metal building construction.


Wall Cavity Fibre RT Insulation

Certified non-woven fibre insulation that provides cost-effective, high-efficiency performance for a wide range of applications which include residential, commercial and industrial building applications.

Insulapack Fibre RT Features & Benefits

  • Made from polyethylene non-woven fibre

  • Designed to be customized to any size & thickness to meet specific requirements

  • Insulapack Fibre RT insulation protects the interior against external temperature penetration as well as against internal temperature loss

  • Insulapack Fibre RT is used for many different applications including insulating wall cavities, foundations and attics, and has a rating of R4.6 per inch and R6 when laminated to metalized film

  • Shipped in 48″ rolls which can be customized for specific requirements

  • Helps maintain desired temperature within the area through all temperature fluctuations throughout the year

  • Being polyethylene, it is impervious to humidity and resists any type of mold or promotion of fungal growth

  • Will not appeal to nor attract rodents or insects

  • Non-toxic and meets all health and safety requirements. No VOCs

  • Recyclable

  • Durable & exceptionally lightweight

  • Significantly beats all flame spread and smoke formation requirements

  • No gloves, goggles, mask nor special clothing/equipment is required. Will not cause any type of skin irritation

  • CERTIFICATION NUMBER ER38051

  • Made in Canada

  • Samples and pricing available upon request

Technical Specifications

Key Specifications

Compliance & Testing

Base R-Value:
R-10.6 per inch (material value)

Fire Rating:
ASTM E84 – Class A

Thickness:
5/16 in (8 mm)

Vapor Permeability
0.02 perms (ASTM E96)

Roll Width
48 in (1220 mm)

Water Resistance
Resistant to moisture penetration

Roll Length
125 ft (38 m)

Building Code Compliance
ICC compliant

Reflectivity
Up to 97% radiant heat reflection (ASTM C1371)

Durability
Engineered for long-term performance in industrial environments

BG Gradient

Why Insulapack

Why Use This Product

Wall cavity insulation in commercial construction needs to perform within the constraints of the assembly — often with limited cavity depth and strict fire code requirements. Insulapack reflective bubble foil wall cavity insulation fits within standard stud cavities and installs without requiring an additional airspace. The multi-layer construction provides R-10.6 per inch of thermal resistance while meeting ASTM E84 Class A fire rating requirements. LEED compliant. Suitable for interior and exterior wall assemblies on commercial projects across Canada and the United States.

Application Areas

Where Wall Cavity Insulation Is Used

Designed for building structures where improved thermal efficiency and radiant heat control are required.

Exterior Walls

Exterior

Walls

Interior Walls

Interior

Walls

Metal Buildings

Metal

Buildings

Steel Framing

Steel

Framing

Commercial Structures

Commercial

Structures

Ready to Get Started?

Tell us about your insulation project and receive a customized quote.

Typical response time: within 24 hours

BG Image
  • Wall Cavity Insulation
  • Bubble Wrap Wall Insulation
  • Wall cavity insulation
  • Foil Insulation For Walls
  • Wall cavity insulation
  • Foil Wall Insulation
  • External Wall Insulation
  • wall cavity fibre insulation
  • Wall Cavity Insulation
  • Bubble Wrap Wall Insulation
  • Wall cavity insulation
  • Foil Insulation For Walls
  • Wall cavity insulation
  • Foil Wall Insulation
  • External Wall Insulation
  • wall cavity fibre insulation
  • Wall Cavity Insulation
  • Bubble Wrap Wall Insulation
  • Wall cavity insulation
  • Foil Insulation For Walls
  • Wall cavity insulation
  • Foil Wall Insulation
  • External Wall Insulation
  • wall cavity fibre insulation

Common questions

Frequently Asked Questions

What is wall cavity insulation used for?

Wall cavity insulation is installed inside wall assemblies to reduce heat transfer and improve the thermal efficiency of buildings.

How does reflective wall insulation work?

Can reflective insulation be installed inside walls?

What R-value does reflective wall insulation provide?

Is reflective wall insulation fire rated?

What is wall cavity insulation used for?

Wall cavity insulation is installed inside wall assemblies to reduce heat transfer and improve the thermal efficiency of buildings.

How does reflective wall insulation work?

Can reflective insulation be installed inside walls?

What R-value does reflective wall insulation provide?

Is reflective wall insulation fire rated?
